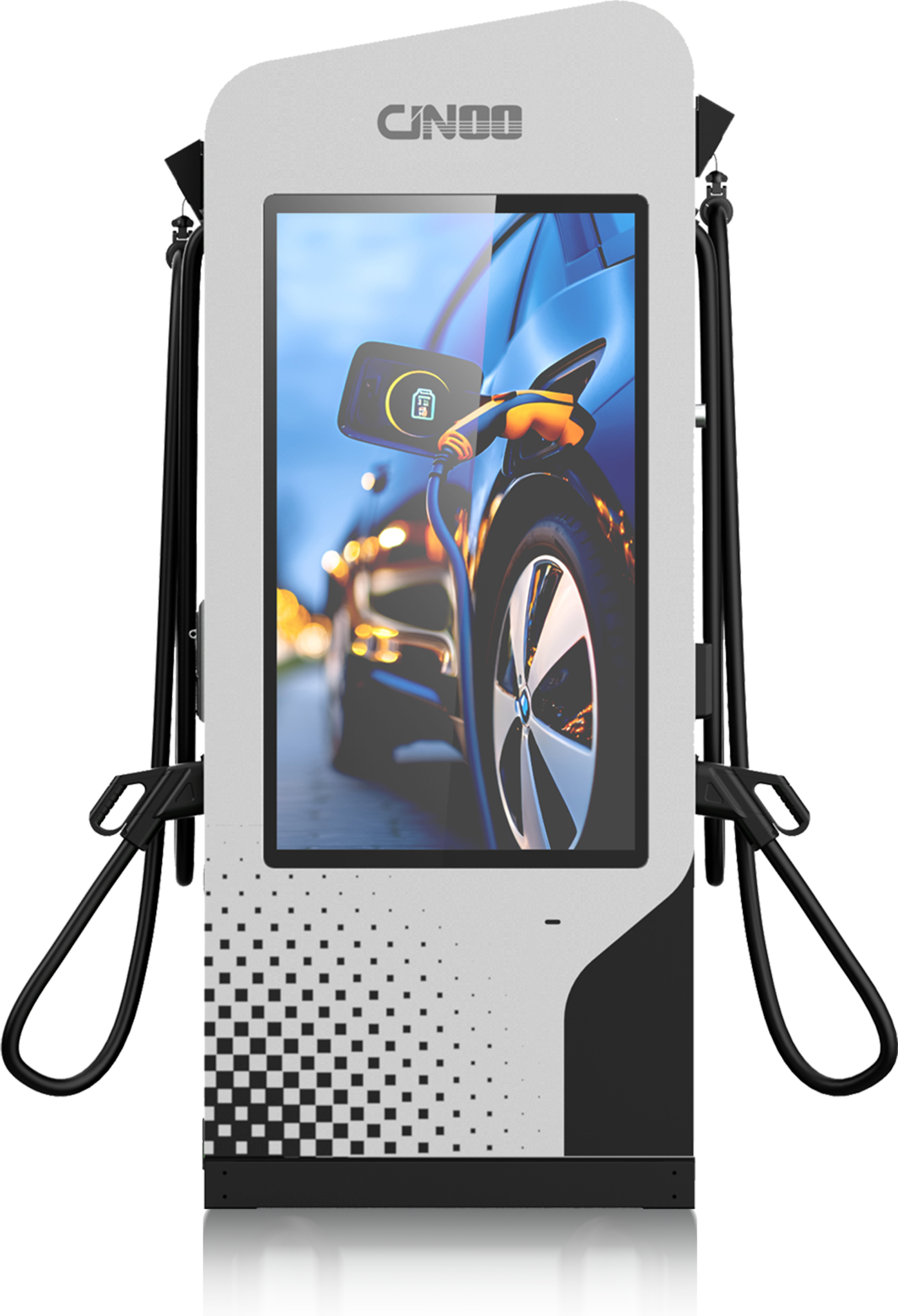

320 kW DC Charger
| Description | 320 kW Dual Output DC Charger |
| Power Input | |
| Input Rating | 400Vac10%, 3-Phase, 50 / 60 Hz,L1, L2, L3, N, PE |
| Power Factor | 0.99 at nominal output |
| Max Efficiency | ≥97.2% |
| Input Total Harmonic Distortion | ≤5% |
| Power Output | |
| Output Voltage | 200 – 1000 Vdc |
| Output Interface | Dual CCS2 |
| DC Output Current | 350A max. |
| DC Output Power | 320kW max. |
| Mechanical | |
| Charging gun | 5m dual charging gun (customizable). |
| Ingress Protection | IP55 |
| Enclosure Protection | IK10 (Screen IK08) |
| Cooling | Air-cooled |
| Dimension (W x H x D) | 935 x 2300 x 600mm |
| Weight | ≤1014 lb (460kg) |
Product introduction
Reliable, innovative, and efficient EV charging solutions backed by world-class R&D and proven global expertise.
Custom Revenue
Large advertising display with integrated POS, enabling ad monetization and card payment.
Easy Operation
Supports RFID, PIN, QR code, VIN, and App charging, with built-in cable management.
Smart Compatibility
Up to 1000V, 99% EV compatibility. OCPP 1.6 (upgradable to 2.0). Multi-standard support.
Robust Design
Corrosion-resistant enclosure with 32-inch touchscreen for operation and media display.
CASES
Highlighting CJNOO’s expertise in ultra-fast charging, battery swapping, and large-scale EV deployment.
Science Lab Building
Long Gate Bridge
Enix Lawyer Building
Deep Sea Bridge
Request a Quote
Learn More From
Frequently Asked Questions
Project location, power requirements, application scenario, and expected quantity.
Typically within 1–3 business days after receiving complete information.
Yes. We provide tailored solutions based on project needs.
Yes. We offer international delivery, engineering support, and O&M services.
