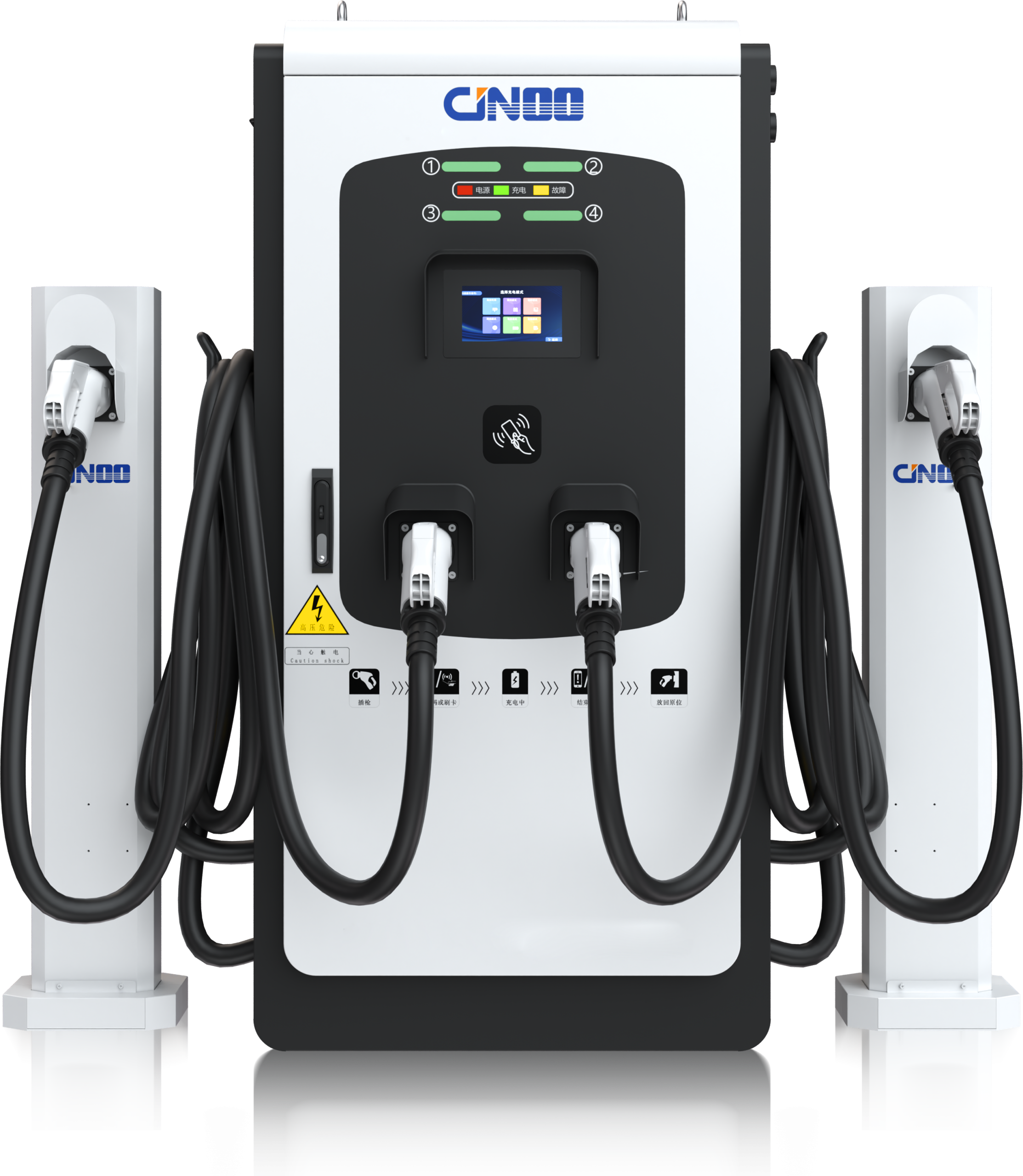

160kW 4 Output DC Charger
| Description | 160kW 4-Gun Output DC Charger |
| Power Input | |
| Input Rating | 400Vac10%, 3-Phase, 50 / 60 Hz,L1, L2, L3, N, PE |
| Power Factor | 0.99 at nominal output |
| Max Efficiency | ≥97.2% |
| Input Total Harmonic Distortion | ≤5% |
| Power Output | |
| Output Voltage | 200 – 1000 Vdc |
| Output Interface | 4 CCS2 |
| DC Output Current | 250A/gun max. |
| DC Output Power | 160kW max. |
| Mechanical | |
| Charging gun | 5m dual +7m dual charging gun (customizable). |
| Ingress Protection | IP55 |
| Enclosure Protection | IK10 (Screen IK08) |
| Cooling | Air-cooled |
| Dimension (W x H x D) | 1600 x 800 x 465 mm; 1200 x 280 x 180 mm, Column |
| Weight | ≤771 lb (350kg) |
Product introduction
Reliable, innovative, and efficient EV charging solutions backed by world-class R&D and proven global expertise.
Modular Design
Modular architecture with multi-level protection and adaptive power distribution. Compliant with CE and UL standards.
Smart Control
Supports scheduled charging, QR code, RFID, and PIN access. Intelligent power sharing with 7-inch touchscreen and real-time
High Efficiency
Up to 97.2% efficiency with low standby consumption. Wide constant power output from 300V to 1000V.
Reliable Safety
IP54 protection with isolated high/low voltage design and multiple safety protections. Quick-release dust filter for 60% faster maintenance.
