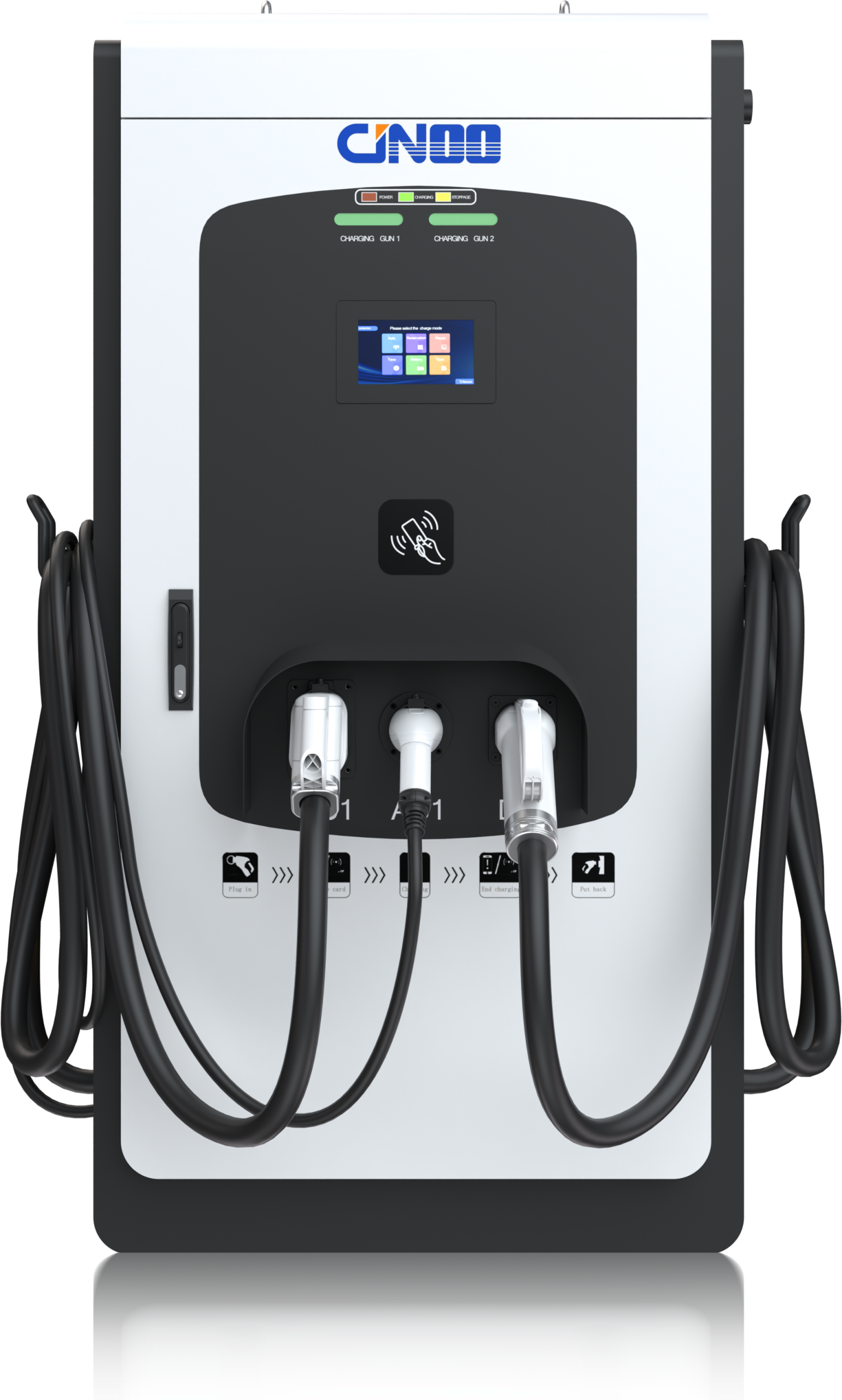

60-600kW DC Charger
| Description | 142kW 3-Gun Output AC&DC Charger |
| Power Input | |
| Input Rating | 400Vac10%, 3-Phase, 50 / 60 Hz,L1, L2, L3, N, PE |
| Power Factor | 0.99 at nominal output |
| Max Efficiency | ≥97.2% |
| Input Total Harmonic Distortion | ≤5% |
| Power Output | |
| Output Voltage | 200 – 1000 Vdc |
| Output Interface | Dual CCS2 & Type2 |
| DC Output Current | 350A max. |
| DC Output Power | 600kW max. |
| AC Output Voltage | 400Vac±10% |
| DC Output Current | 32A max |
| DC Output Power | 22kW max |
| Mechanical | |
| Charging gun | 5m 3 charging gun (customizable). |
| Ingress Protection | IP55 |
| Enclosure Protection | IK10 (Screen IK08) |
| Cooling | Air-cooled |
| Dimension (W x H x D) | 1670 x 764 x 550 mm |
| Weight | ≤705 lb (320kg) |
Product introduction
Reliable, innovative, and efficient EV charging solutions backed by world-class R&D and proven global expertise.
Modular Design
Modular architecture with multi-level protection and adaptive power distribution. Compliant with CE and UL standards.
Smart Control
Supports scheduled charging, QR code, RFID, and PIN access. Intelligent power sharing with 7-inch touchscreen and real-time
High Efficiency
Up to 97.2% efficiency with low standby consumption. Wide constant power output from 300V to 1000V.
Reliable Safety
IP54 protection with isolated high/low voltage design and multiple safety protections. Quick-release dust filter for 60% faster maintenance.
CASES
Highlighting CJNOO’s expertise in ultra-fast charging, battery swapping, and large-scale EV deployment.
Science Lab Building
Long Gate Bridge
Enix Lawyer Building
Deep Sea Bridge
Request a Quote
Learn More From
Frequently Asked Questions
Project location, power requirements, application scenario, and expected quantity.
Typically within 1–3 business days after receiving complete information.
Yes. We provide tailored solutions based on project needs.
Yes. We offer international delivery, engineering support, and O&M services.
