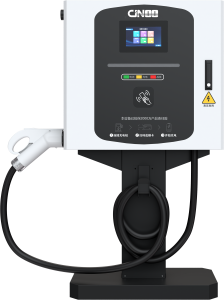

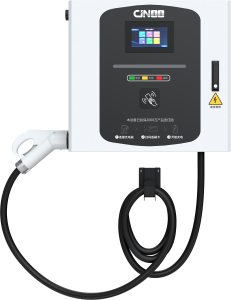

40 kW DC charger
| Description | 40 kW single-gun DC charger |
| Power Input | |
| Input Rating | 400Vac10%, 3-Phase, 50 / 60 Hz,L1, L2, L3, N, PE |
| Power Factor | 0.99 at nominal output |
| Max Efficiency | ≥97.2% |
| Input Total Harmonic Distortion | ≤5% |
| Power Output | |
| Output Voltage | 200 – 1000 Vdc |
| Output Interface | CCS2*1 |
| DC Output Current | 133A max. |
| DC Output Power | 40kW max. |
| Mechanical | |
| Charging gun | 5m charging gun (customizable). |
| Ingress Protection | IP54 |
| Enclosure Protection | IK10 (Screen IK08) |
| Cooling | Air-cooled |
| Dimension (W x H x D) | 650 x 700 x 300 mm, wall-mounted 1300 x 700 x 300 mm, pedestal |
| Weight | ≤96 kg/ 212 lb (wall-mounted) ≤106 kg/ 234 lb (pedestal) |
Product introduction
Reliable, innovative, and efficient EV charging solutions backed by world-class R&D and proven global expertise.
Integrated Design
All-in-one compact structure with 7-inch touchscreen, multi-protocol support, and precise metering.
High Efficiency
Up to 97.2% efficiency with 200–1000V wide voltage range, covering 99% of EV fast charging needs.
Smart Operation
Supports QR code, RFID, PIN, VIN, and scheduled charging with intuitive user interaction.
Safety Protection
Comprehensive protection including overvoltage, overcurrent, leakage, short circuit, and PWM fault detection.
CASES
Highlighting CJNOO’s expertise in ultra-fast charging, battery swapping, and large-scale EV deployment.
Science Lab Building
Long Gate Bridge
Enix Lawyer Building
Deep Sea Bridge
Request a Quote
Learn More From
Frequently Asked Questions
Project location, power requirements, application scenario, and expected quantity.
Typically within 1–3 business days after receiving complete information.
Yes. We provide tailored solutions based on project needs.
Yes. We offer international delivery, engineering support, and O&M services.
